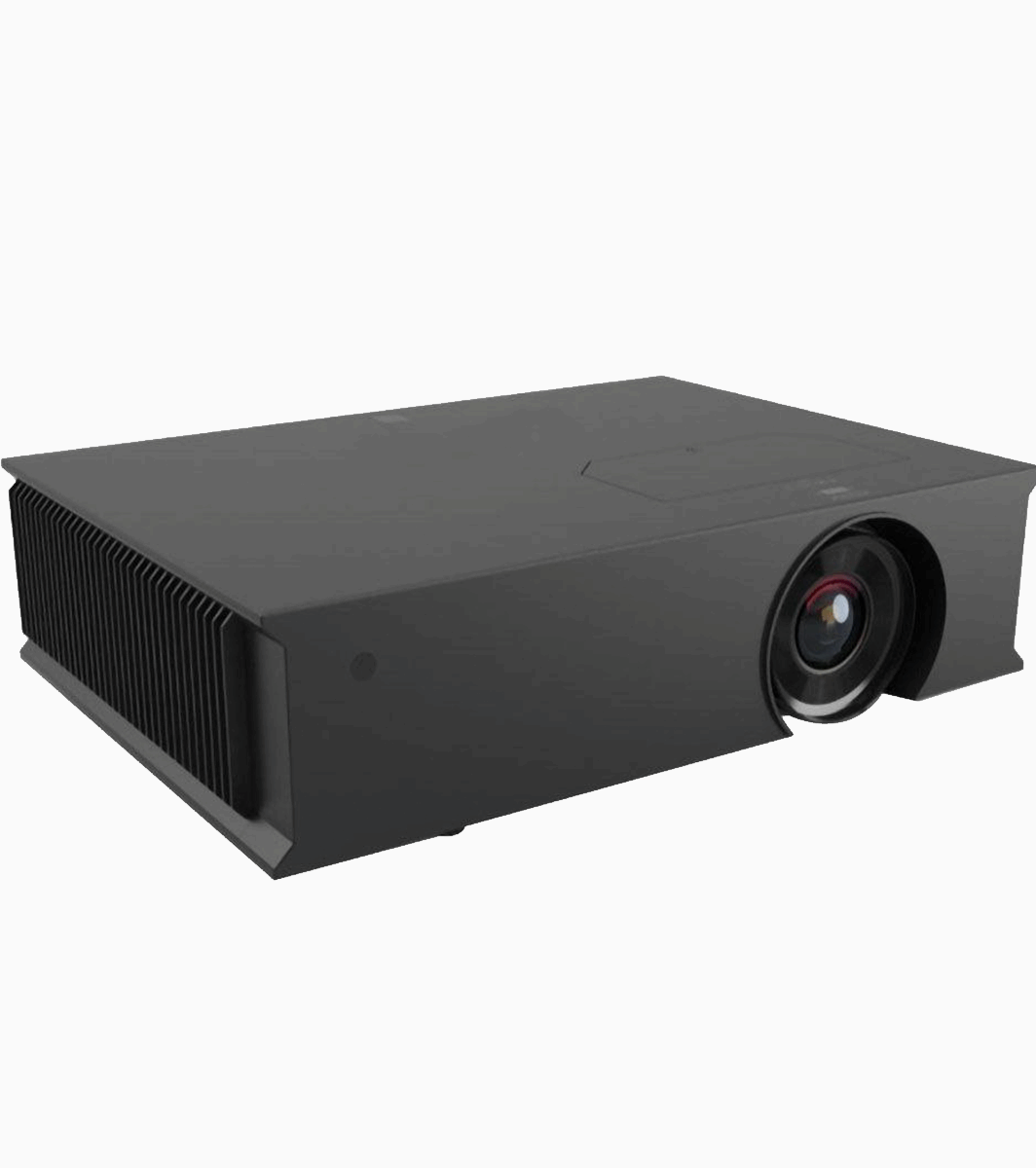

4K Education & Business Projector
Model: E5
This compact projector delivers ultra clear images yet is smaller and lighter than peers, ideal for business and education presentations and exhibitions.
Resolution: 3840×2160
Brightness: 6000 ANSI Lumen
Aspect Ratio: 16:9
Contrast Ratio: 3,000,000:1
Size/Weight: 473mm*388mm*151mm / 7KG
Contact Us
Share this product
Edu & Business Projector Features
KOONEW E5 DLP laser projector with native 4K ultra HD, revealing every detail. Built for office/classroom presentations, art exhibitions, and other commercial/education events.
Ultra high brightness: KOONEW E5 delivers 6,000 ANSI lumens, ideal for indoor teaching and business presentations, rendering fine detail clearly.
Crisp image quality: KOONEW E5 uses 4K DLP technology with high contrast and accurate color reproduction, producing sharper text, smoother motion, and clean edges for a more lifelike picture.
Durable and reliable: Rated for up to 40,000 hours. The laser light source resists color shift so image quality remains consistent over long term use.
Compact design: The advanced DLP laser engine makes the chassis smaller and lighter than many peers, delivering strong performance in a compact body that is easy to install.
Projection Size Reference
Reference projection sizes for the KOONEW E5 projector rated at 6000 lumens in various environments. Assumptions: screen gain 1.2.
Note: Projection size varies with ambient light and screen gain.
| Venue | Ambient Illuminance | Target Contrast Ratio | Projection Size Reference |
|---|---|---|---|
| Home Theater | 2 lux | 30:1 | 389 inch |
| Conference Room | 100 lux | 15:1 | 147 inch |
| Classroom | 150 lux | 15:1 | 120 inch |
| Auditorium | 120 lux | 12:1 | 152 inch |
| Church | 100 lux | 12:1 | 166 inch |
| Trade Show | 200 lux | 10:1 | 130 inch |
| Art Exhibition | 150 lux | 10:1 | 150 inch |
Edu & Business Projector E5 Details
IP5X Rated Dust Protection
IP5X Rated Dust Protection
KOONEW E5 projector features a sealed optical engine that effectively resists dust, ensuring durability and reliability and enabling 24/7 maintenance-free operation.
Amazing Color
Amazing Color
Covers Rec.709 for accurate, HD-grade color, combining a wide color gamut with high brightness.
Edge Blending Support
KOONEW E5 large scale projector offers built-in edge-blending capabilities, enabling seamless fusion across multiple projectors without additional hardware, unleashing limitless creativity in your installations.
Lens Shift
Lens Shift
Supports lens shift of ±46% horizontally and ±120% vertically, giving much greater flexibility in projector placement.
Multiple Lenses for Diverse Applications
Multiple Lenses for Diverse Applications
KOONEW A26 projector compatible with a range of optional lenses, maximizing throw ratio coverage. Quick one-touch switching enables greater flexibility in installation and projection layout. Lens replacement is simple and secure.
Keystone and Corner Fit
Keystone and Corner Fit
When the projector is not perpendicular to the screen, keystone correction can adjust the image. Combined with four-corner adjustment technology, the image can be stretched or pulled back to each corner of the screen for a perfect fit.
Friendly to exhibits and audiences
Friendly to exhibits and audiences
KOONEW E5 projector emits no IR/UV radiation, making it ideal for long-term use, close-range viewing, and artifact-sensitive environments such as museums and exhibitions.
Comprehensive Connectivity
| Display | Input/Output | Lens |
| Projection Technology: 4K DLP | HDMI IN ×2 |
Throw Ratio: 0.67:1; 0.81 to 0.89:1; 1.36 to 2.18:1 (manual zoom) Vertical Lens Shift: −120% to +120% Horizontal Lens Shift: −46% to +46% |
| Brightness: 6,000 ANSI lumens | VGA ×1 | |
| Resolution: 3840×1260 | USB Type A (Power)5V 1.5A ×1 | |
| Aspect Ratio: 16:9 | RS232 ×1 | |
| Contrast Ratio: 3,000,000:1 | MINI USB ×1 | |
| Uniformity: >90% | 12V Trigger ×1 | |
| Keystone correction: V ±30°，H ±30° | ||
| Laser Display: Speckle Free® | ||
| Lifespan: 20,000 / 40,000 hours |
Display
Projection Technology: 4K DLP
Brightness: 6,000 ANSI lumens
Resolution: 3840×1260
Aspect Ratio: 16:9
Contrast Ratio: 3,000,000:1
Uniformity: >90%
Keystone correction: V ±30°，H ±30°
Laser Display: Speckle Free®
Lifespan: 20,000 / 40,000 hours
Input/Output
HDMI IN ×2
VGA ×1
USB Type A (Power)5V 1.5A ×1
RS232 ×1
MINI USB ×1
12V Trigger ×1
Lens
Throw Ratio: 0.67:1; 0.81 to 0.89:1; 1.36 to 2.18:1 (manual zoom)
Vertical Lens Shift: −120% to +120%
Horizontal Lens Shift: −46% to +46%
Specification Download
FAQ
What is the difference between OEM and ODM?
OEM (Original Equipment Manufacturing): We manufacture projectors based on your brand design and technical specifications. The products fully comply with your customized requirements (such as appearance, packaging, LOGO, etc.). ODM (Original Design Manufacturing): We offer a full-process service from product design, research and development to production. You can choose the existing solutions or propose functional requirements (such as resolution, brightness, system compatibility, etc.). We conduct customized development. Comparison of advantages: OEM is suitable for customers with mature designs, while ODM is suitable for purchasers who need differentiated products.
What certifications do your products comply with for EU/NA markets?
EU (CE Certification): Compliant with the Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC), ensuring electrical safety and anti-interference capability. North America (FCC Certification): Wireless models require FCC-ID certification, wired models require FCC-SDOC certification; models containing laser modules require additional FDA certification. Environmental protection standards: The entire series complies with the Restriction of Hazardous Substances Directive (RoHS). Note: We provide support for documents certificating and can assist in completing compliance testing for target markets.
What is the minimum order quantity (MOQ)?
Standard OEM Products: MOQ is 1 unit. It’s suitable for sample testing or small batch trial order selling. Customized ODM Products: MOQ is adjusted according to the complexity of design (usually ≥ 500 units). The mold-opening cost can be shared among large orders. Flexible Policy: Long-term cooperation customers can apply for tiered MOQ discounts.
How long is the production time？
OEM Orders: Delivery within 15-30 days after design confirmation (one day delivery is supported when inventory is sufficient). ODM Development: Approximately 55 days after scheme confirmation (including mold opening, sample production and testing), with a separate calculation for the mass production time. Urgent Order Service: Urgent orders can shorten the production cycle by 30% and an expedited fee needs to be paid.
Can you handle logistics and customs clearance?
Logistics: Offer various shipping terms such as EXW/FOB/DDP, cooperate with international logistics providers like DHL and FedEx, and support dropshipping. Customs Clearance: Provide complete packing lists, invoices and COO certificates. In the ASEAN region, FORM E origin preferential treatment can be applied for. Value-added Services: Purchase transportation insurance to cover damage claims.
What customization options are available?
Module Customization Hardware Resolution (720P to 4K), Brightness (100 – 4500 lumens), Power Specifications (US/European standards, etc.), Battery Capacity Software Android System Version, Multi-language Interface, Pre-installed APKs (such as Netflix/YouTube) Appearance Shell Material/Color, Laser Engraving of Brand LOGO, Gift Packaging Design Accessories Custom Remote Control, Anti-glare Screen, Portable Bag, Multi-language User Manuals
What payment terms do you accept?
Sample Order: 100% Prepayment (PayPal/Western Union) Bulk Order: 30% Deposit + T/T Balance Payment, L/C (≥ 500 units) Credit Customer: Credit period supported (Qualifications need to be reviewed)
Do you provide warranty and technical support?
Warranty Period: 1 year for the entire machine (LED/Laser technology lifespan ≥ 25,000 hours) After-sales Service: Remote fault diagnosis, global direct delivery of spare parts, local service provider connection (North America/Europe/Southeast Asia) Training: Provide product manual, installation video and API interface documentation (for system customization customers)
How to ensure product quality consistency?
Quality Control System: ISO9001-certified factory, full-process automated inspection (including aging test, optical calibration) Transparency Tracking: Provide photo/video updates during production stage, support third-party inspection (SGS/BV, etc.)
