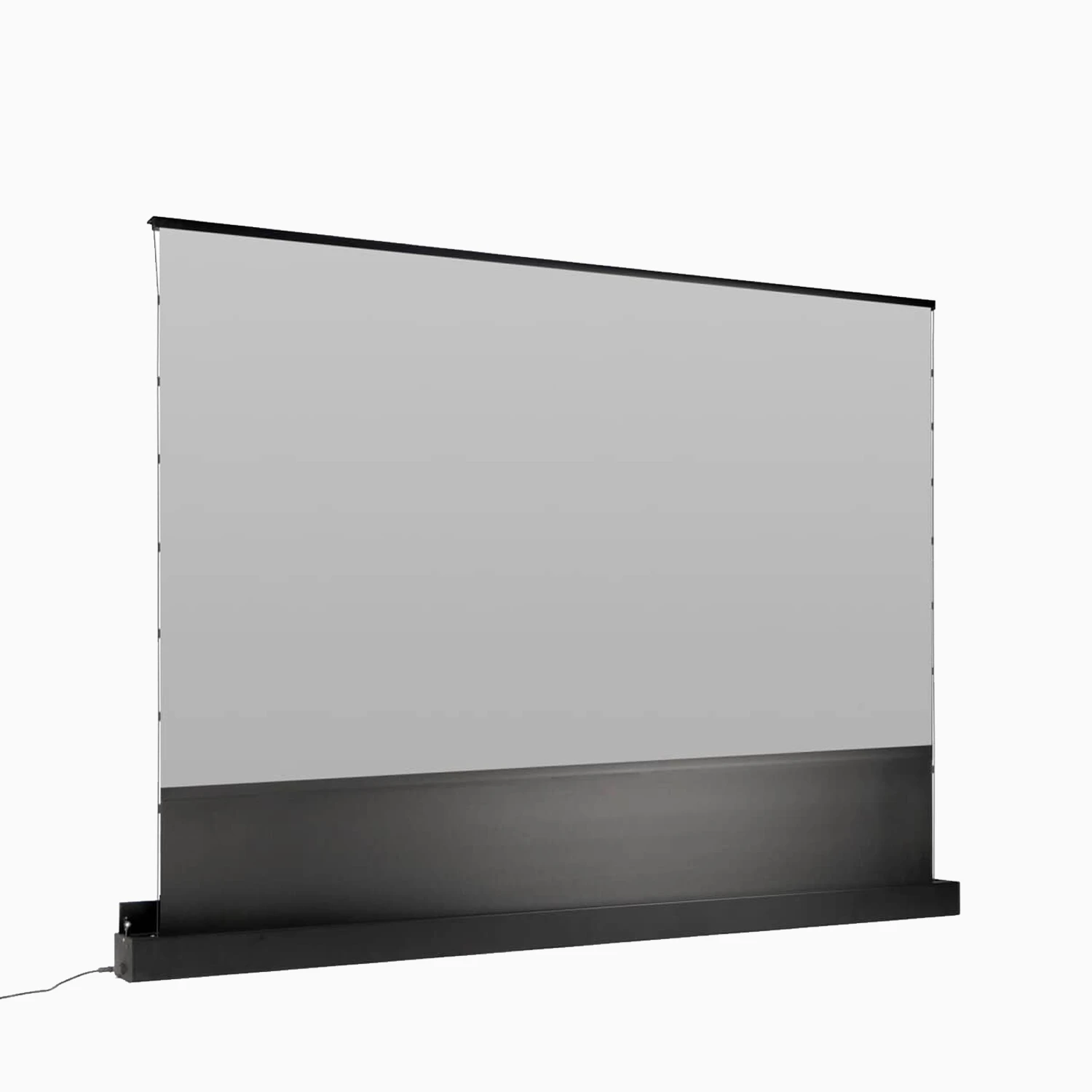

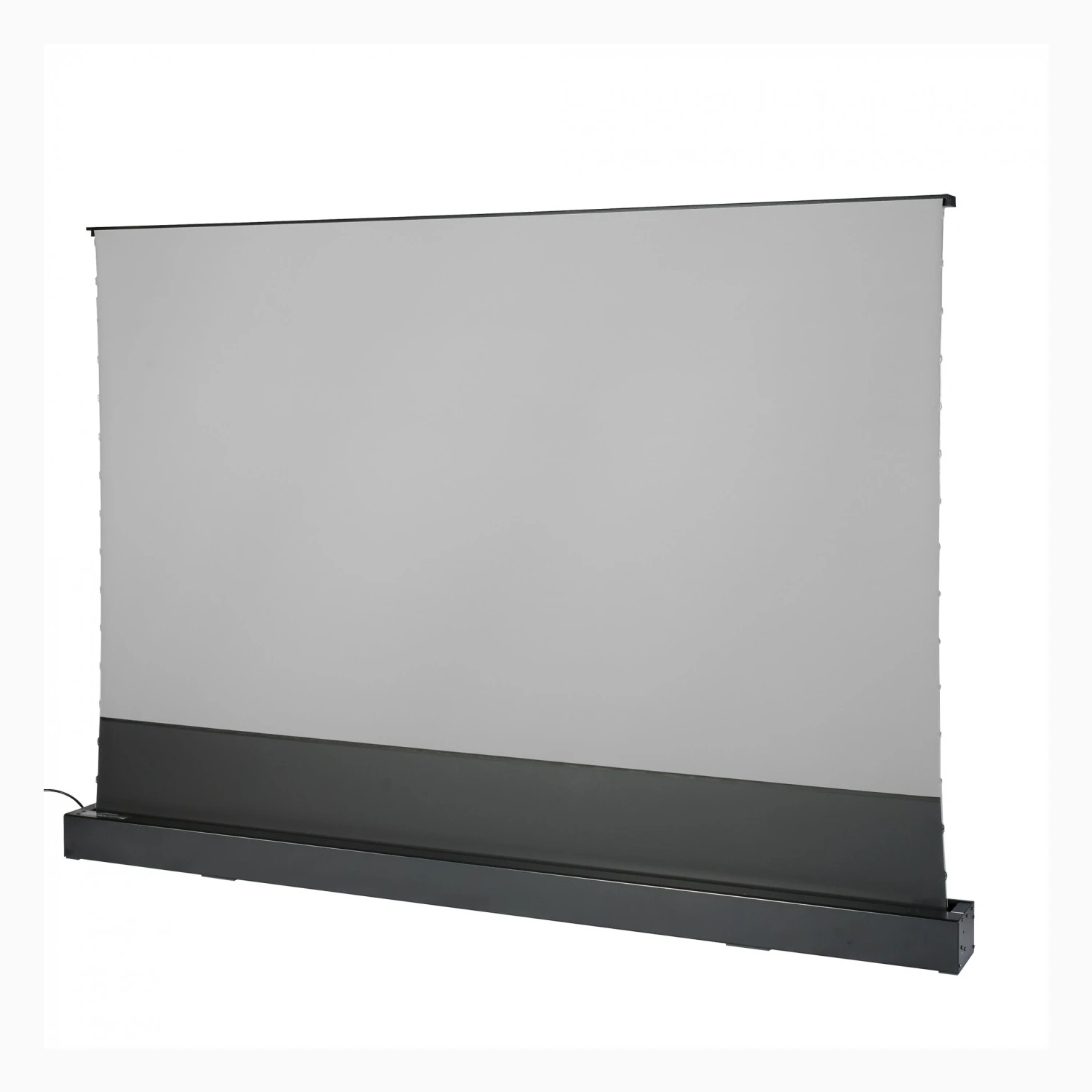

Custom 72–120″ Electric Floor-Rising CLR Projector Screen
Model: F-120GR
Large-format, color-neutral, sparkle-free matte-white diffusion screen for front projection.
Mount Type: Floor
Supported Resolution: 4K/8K Ready
Screen Type: Electric
Aspect Ratio:Available in 16:9,
Front/Rear Projection: Front
Contact Us
Share this product
CLR Screen Features
KOONEW F-120GR is an electric floor-rising, CLR (Ceiling Light Rejecting) projection screen that is floor-mounted and raised upward by a motor controlled via remote. It effectively reduces the impact of overhead ambient light on the projected image to improve clarity, making it an ideal match for ultra-short-throw (UST) projectors.
Clear Image Experience: The K-120GR screen features a directional CLR optical microstructure that effectively reduces ambient (especially overhead) light interference, making the image clearer.
Vivid Image Quality: The K-120GR UST projection screen uses a nano-crystalline light-rejection layer, delivering higher color accuracy, more vibrant images, and stronger depth—bringing an immersive visual experience.
Durable & easy to maintain: F-120GR CLR screen features UV-stabilized performance, making it less prone to yellowing over long-term use, and offers effective anti-mildew/antibacterial properties with an easy-to-clean surface.
CLR Screen Parameter
| Format | Size | View Area W × H |
|---|---|---|
| Unit: inch | Unit: mm | |
| 16:9 | 72 | 1594 × 897 |
| 84 | 1860 × 1046 | |
| 92 | 2037 × 1146 | |
| 100 | 2214 × 1245 | |
| 110 | 2435 × 1370 | |
| 120 | 2657 × 1494 |

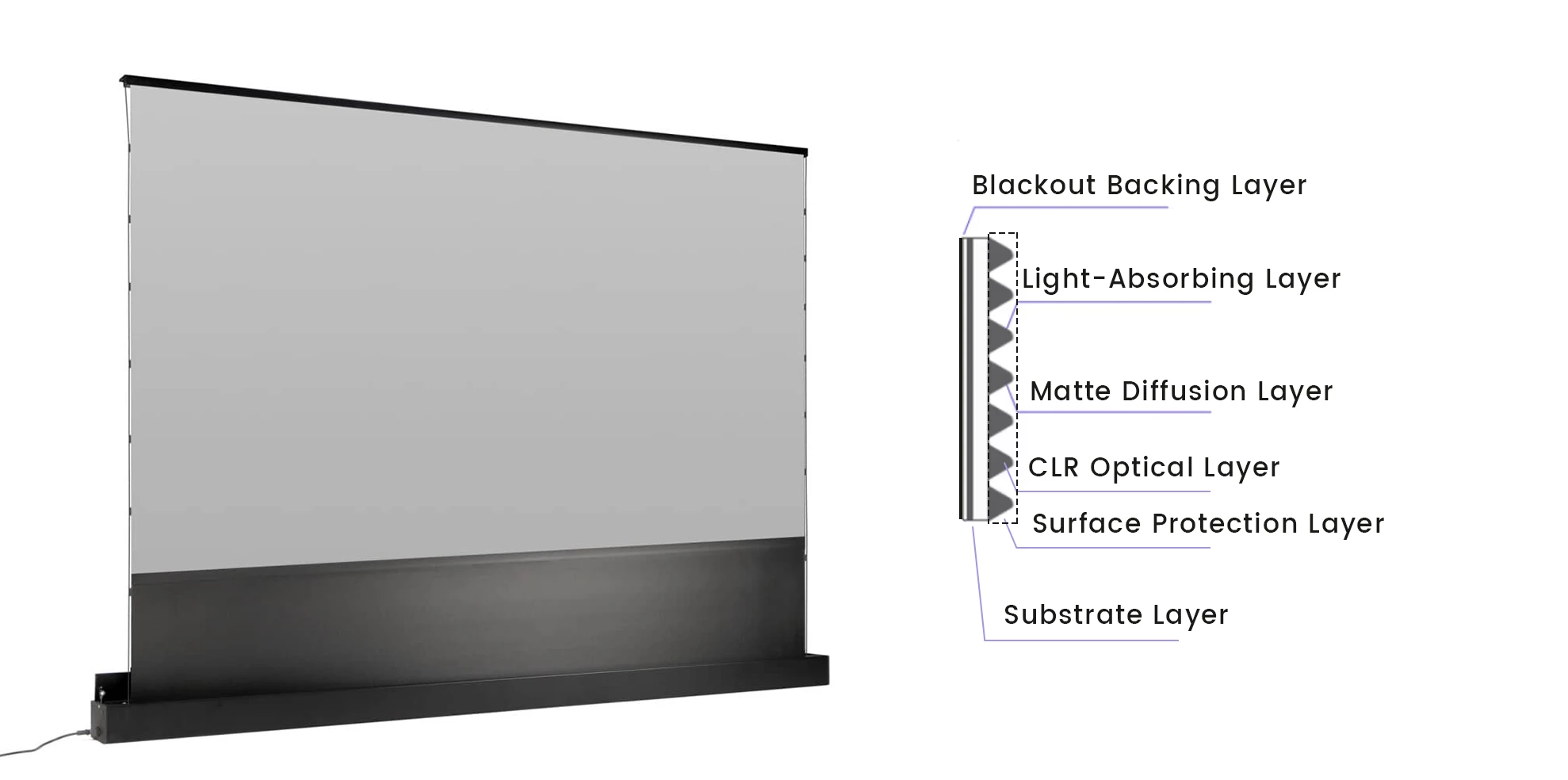

CLR Screen Structure
KOONEW F-120GR CLR screen is built with a six-layer construction and is the perfect solution for ultra-short-throw, large-format projection in bars, home theaters, and conference rooms.
Surface Protection Layer
Made of a transparent, wipe-clean acrylic coating. It resists micro-scratches, reduces dust adhesion, and can be easily cleaned with a damp cloth. It also offers mildew and corrosion resistance.
Matte Diffusion Layer
Composed of nano-grade TiO₂, featuring a sparkle-free surface and color neutrality (low ΔE).
CLR Optical Layer
The CLR optical layer is the most important part of a CLR screen. It is a resin layer built with directional microstructures in a sawtooth or louver pattern. When an ultra-short-throw projector projects from below, this layer effectively rejects light coming from above—including ceiling fixtures and other overhead ambient light—reducing their influence on the image and preserving clarity.
Light-Absorbing Layer
A carbon-black absorption coating that suppresses stray light, reduces haze, and deepens blacks.
Substrate Layer
Flexible gray PVC that is rollable and dimensionally stable, ensuring the CLR screen remains flat without wrinkling.
Blackout Backing Layer
Flexible black PVC that blocks light from behind, improving image contrast by shielding rear ambient light.

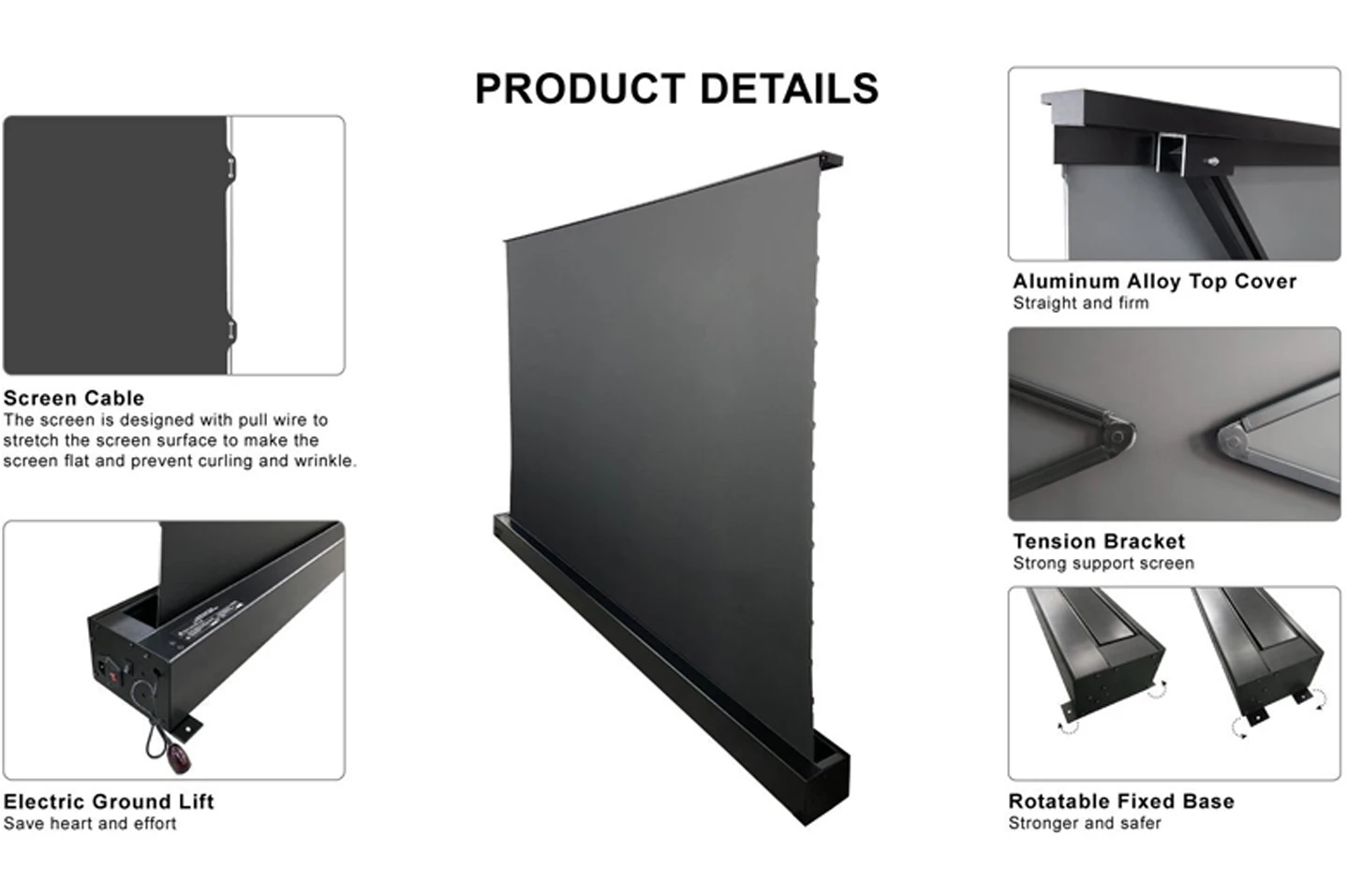

Details
Applicatoion
| Special Features: | CLR Screen |
| Mount Type: | Floor |
| Surface Color: | Grey |
| Supported Resolution: | 4K/8K Ready |
| Screen Type: | Electric Drop-Down |
| Aspect Ratio: | Available in 16:9 |
| Viewable Diagonal: | Available in 72-120 inches |
| Gain: | 0.8 |
| Viewing Angle (Half-Gain): | 60-90° |
| Front/Rear Projection: | Front |
Specification Download
FAQ
What is the difference between OEM and ODM?
OEM (Original Equipment Manufacturing): We manufacture projectors based on your brand design and technical specifications. The products fully comply with your customized requirements (such as appearance, packaging, LOGO, etc.). ODM (Original Design Manufacturing): We offer a full-process service from product design, research and development to production. You can choose the existing solutions or propose functional requirements (such as resolution, brightness, system compatibility, etc.). We conduct customized development. Comparison of advantages: OEM is suitable for customers with mature designs, while ODM is suitable for purchasers who need differentiated products.
What certifications do your products comply with for EU/NA markets?
EU (CE Certification): Compliant with the Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC), ensuring electrical safety and anti-interference capability. North America (FCC Certification): Wireless models require FCC-ID certification, wired models require FCC-SDOC certification; models containing laser modules require additional FDA certification. Environmental protection standards: The entire series complies with the Restriction of Hazardous Substances Directive (RoHS). Note: We provide support for documents certificating and can assist in completing compliance testing for target markets.
What is the minimum order quantity (MOQ)?
Standard OEM Products: MOQ is 1 unit. It’s suitable for sample testing or small batch trial order selling. Customized ODM Products: MOQ is adjusted according to the complexity of design (usually ≥ 500 units). The mold-opening cost can be shared among large orders. Flexible Policy: Long-term cooperation customers can apply for tiered MOQ discounts.
How long is the production time？
OEM Orders: Delivery within 15-30 days after design confirmation (one day delivery is supported when inventory is sufficient). ODM Development: Approximately 55 days after scheme confirmation (including mold opening, sample production and testing), with a separate calculation for the mass production time. Urgent Order Service: Urgent orders can shorten the production cycle by 30% and an expedited fee needs to be paid.
Can you handle logistics and customs clearance?
Logistics: Offer various shipping terms such as EXW/FOB/DDP, cooperate with international logistics providers like DHL and FedEx, and support dropshipping. Customs Clearance: Provide complete packing lists, invoices and COO certificates. In the ASEAN region, FORM E origin preferential treatment can be applied for. Value-added Services: Purchase transportation insurance to cover damage claims.
What customization options are available?
Module Customization Hardware Resolution (720P to 4K), Brightness (100 – 4500 lumens), Power Specifications (US/European standards, etc.), Battery Capacity Software Android System Version, Multi-language Interface, Pre-installed APKs (such as Netflix/YouTube) Appearance Shell Material/Color, Laser Engraving of Brand LOGO, Gift Packaging Design Accessories Custom Remote Control, Anti-glare Screen, Portable Bag, Multi-language User Manuals
What payment terms do you accept?
Sample Order: 100% Prepayment (PayPal/Western Union) Bulk Order: 30% Deposit + T/T Balance Payment, L/C (≥ 500 units) Credit Customer: Credit period supported (Qualifications need to be reviewed)
Do you provide warranty and technical support?
Warranty Period: 1 year for the entire machine (LED/Laser technology lifespan ≥ 25,000 hours) After-sales Service: Remote fault diagnosis, global direct delivery of spare parts, local service provider connection (North America/Europe/Southeast Asia) Training: Provide product manual, installation video and API interface documentation (for system customization customers)
How to ensure product quality consistency?
Quality Control System: ISO9001-certified factory, full-process automated inspection (including aging test, optical calibration) Transparency Tracking: Provide photo/video updates during production stage, support third-party inspection (SGS/BV, etc.)
