Fixed Installation Projector for Event
Model: HW8
HD color gamut combined with high brightness — an engineering laser projector for indoor and outdoor large-venue projection scenarios
Resolution: 1920×1200
Brightness: 8400 ANSI Lumen
Aspect Ratio: 16:10
Contrast Ratio: 2000,000:1

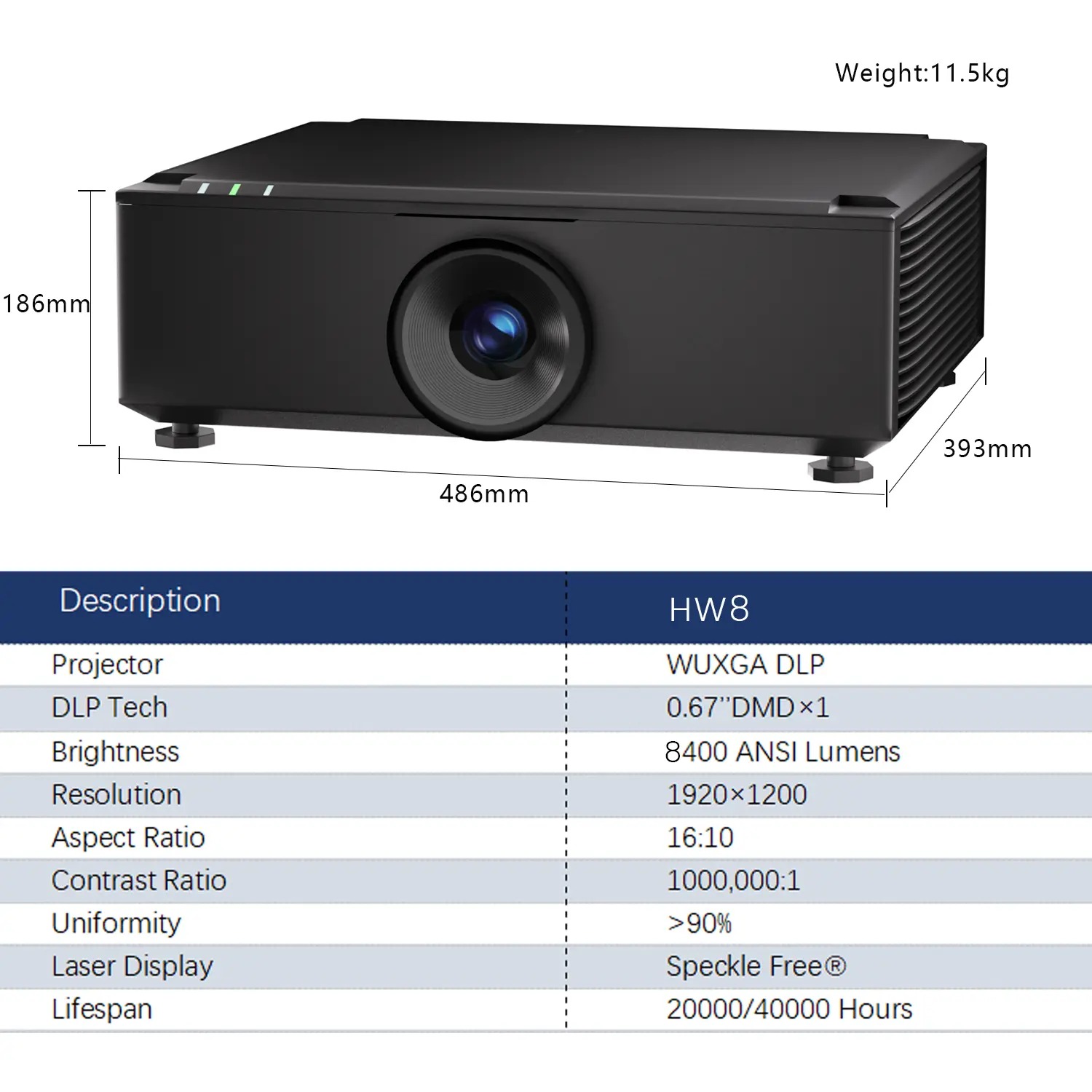

Size/Weight: 486mm*393mm*186mm / 13KG
Contact Us
Share this product
Specifications
Scenario
OEM & ODM
Contact
FAQ
Specifications
Display
Projection Technology: WXGA DLP
Chip: 0.67”DMD x 1
Brightness: 8400 ANSI Lumen
Resolution: 1920×1200
Aspect Ratio: 16:10
Contrast Ratio: 2000,000:1
Uniformity: >90%
Laser Display: Speckle Free®
Lifespan: 20,000/40,000 hours
Projection Technology: WXGA DLP
Chip: 0.67”DMD x 1
Brightness: 8400 ANSI Lumen
Resolution: 1920×1200
Aspect Ratio: 16:10
Contrast Ratio: 2000,000:1
Uniformity: >90%
Laser Display: Speckle Free®
Lifespan: 20,000/40,000 hours
Lens
Lens Throw Ratio: AP-HLB03: 0.3:1; AP-HLB05:0.5:1 ; AP-HLB06:0.6:1 ;AP-HLB07A: 0.75-0.95:1; APHLB07B: 0.7:1; AP-HLB07C:0.71-0.79;AP-HLB07D: 0.74-1.2:1; AP-HLB08: 0.8:1; AP-HLB09A: 0.95-1.23:1; AP-HLB12: 1.22-1.53:1; AP-HLB14: 1.4-2.5:1; AP-HLB15: 1.52-2.92:1; AP-HLB29: 2.9-5.5:1
Vertical Lens Shift: -100% to +100%
Horizontal Lens Shift: -30% to +30%
Lens Throw Ratio: AP-HLB03: 0.3:1; AP-HLB05:0.5:1 ; AP-HLB06:0.6:1 ;AP-HLB07A: 0.75-0.95:1; APHLB07B: 0.7:1; AP-HLB07C:0.71-0.79;AP-HLB07D: 0.74-1.2:1; AP-HLB08: 0.8:1; AP-HLB09A: 0.95-1.23:1; AP-HLB12: 1.22-1.53:1; AP-HLB14: 1.4-2.5:1; AP-HLB15: 1.52-2.92:1; AP-HLB29: 2.9-5.5:1
Vertical Lens Shift: -100% to +100%
Horizontal Lens Shift: -30% to +30%
Input/Output
HDMI IN ×2
HDBaseT ×1
3D Sync x2 (IN/OUT)
Audio Out ×1
RS232 ×1
Remote In ×1
RJ45 ×1
USB-A POWER OUT (5V 0.5A)×1
12V OUT ×1
HDMI IN ×2
HDBaseT ×1
3D Sync x2 (IN/OUT)
Audio Out ×1
RS232 ×1
Remote In ×1
RJ45 ×1
USB-A POWER OUT (5V 0.5A)×1
12V OUT ×1
Power
Power 240 VAC: 450W
Standby240 VAC: ≤0.5W
Power 240 VAC: 450W
Standby240 VAC: ≤0.5W
Scenario
OEM & ODM
Home Projector OEM/ODM Service Introduction
—Flexible Customization · Global Direct Delivery · Quality Assurance—
I. Core Business Modes
1. OEM/ODM deep cooperation
OEM Contract Manufacturing: We provide end-to-end services ranging from hardware production to brand licensing based on customer requirements. Customers can specify product parameters (such as resolution, brightness, system functions, etc.), and we are responsible for design, manufacturing, and quality control.
ODM Solution Output: We support customers in choosing existing mature solutions for rapid market launch, covering finished smart projectors, accessories, and innovative products (such as projection devices with integrated LED lighting functions). We own complete intellectual property rights, and customers can customize the appearance and brand logo.
2. Service for Small Batch Orders
Flexible MOQ: Supports minimum order quantity of 100 units, meeting the demands of start-up brands, online sales, and personalized customization, and reducing the inventory pressure on customers.
Fast Response Cycle: Relying on the Integrated Product Development (IPD) model, the project from approval to mass production is shortened by 30%, meeting the requirements of rapid market replacement.
3. Local delivery in Europe and America, providing tariff optimization solutions
Direct shipping from local warehouses in the US&EU: We have established warehousing centers in North America and Europe, providing local delivery services, and shortening the shipping time to 3-5 days.
Compliance certification guarantee: The products comply with FCC, CE, RoHS and other standards.
4. Various logistics arrangements for shipping from China, optimizing transportation costs.
Logistics solution combining sea shipping, air shipping and express delivery.
II. Our Product and Technology Advantages
1. Full coverage of all categories
Smart Projection Series: Equipped with mainstream configurations such as 720P/1080P/4K resolutions, 100-4000+ lumens high brightness, auto focus, and keystone image correction.
2. Autonomy of core technologies
Independently developed optical machine capabilities: Independently developed optical machines account for over 70%, supporting DLP/LCD technologies, and the picture quality is industry-leading.
Smart system compatibility: Equipped with Android / Google TV, compatible with mainstream platforms such as Netflix and YouTube, and supports multi-language user interfaces customization.
3. Extended Value Added Services
Co-branding Operation: Offer comprehensive marketing solutions including overseas crowdfunding and social media marketing.
III. Cooperation Process
1. Demand Matching:
Customers submit customized requirements (functions, appearance, certifications, etc.), and we will provide solution quotations.
2. Sample R&D:
Sample development is completed within 15-30 working days, and remote video sample acceptance is supported.
3. Mass Production Delivery:
Production is finished within 30-45 days after confirming the order.
4. After-sales Support:
Provide 1-year warranty, technical team response, and firmware OTA upgrade services.
Contact
Jessica
Sales Manager
+86 13723762297
24 hours a day
jessica@koonew.com
Contact you shortly
Shenzhen, China
Welcome to visit
Facebook
Follow us on Facebook
FAQ
Q1: What is the difference between OEM and ODM?
A: OEM (Original Equipment Manufacturing): We manufacture projectors based on your brand design and technical specifications. The products fully comply with your customized requirements (such as appearance, packaging, LOGO, etc.).
ODM (Original Design Manufacturing): We offer a full-process service from product design, research and development to production. You can choose the existing solutions or propose functional requirements (such as resolution, brightness, system compatibility, etc.). We conduct customized development.
Comparison of advantages: OEM is suitable for customers with mature designs, while ODM is suitable for purchasers who need differentiated products.
Q2: What certifications do your products comply with for EU/NA markets?
A:EU (CE Certification): Compliant with the Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC), ensuring electrical safety and anti-interference capability.
North America (FCC Certification): Wireless models require FCC-ID certification, wired models require FCC-SDOC certification; models containing laser modules require additional FDA certification.
Environmental protection standards: The entire series complies with the Restriction of Hazardous Substances Directive (RoHS).
Note: We provide support for documents certificating and can assist in completing compliance testing for target markets.
Q3: What is the minimum order quantity (MOQ)?
A:Standard OEM Products: MOQ is 1 unit. It’s suitable for sample testing or small batch trial order selling.
Customized ODM Products: MOQ is adjusted according to the complexity of design (usually ≥ 500 units). The mold-opening cost can be shared among large orders.
Flexible Policy: Long-term cooperation customers can apply for tiered MOQ discounts.
Q4: How long is the production time？
A:OEM Orders: Delivery within 15-30 days after design confirmation (one day delivery is supported when inventory is sufficient).
ODM Development: Approximately 55 days after scheme confirmation (including mold opening, sample production and testing), with a separate calculation for the mass production time.
Urgent Order Service: Urgent orders can shorten the production cycle by 30% and an expedited fee needs to be paid.
Q5: Can you handle logistics and customs clearance?
A:Logistics: Offer various shipping terms such as EXW/FOB/DDP, cooperate with international logistics providers like DHL and FedEx, and support dropshipping.
Customs Clearance: Provide complete packing lists, invoices and COO certificates. In the ASEAN region, FORM E origin preferential treatment can be applied for.
Value-added Services: Purchase transportation insurance to cover damage claims.
Q6: What customization options are available?
A:Module Customization
Hardware Resolution (720P to 4K), Brightness (100 – 4500 lumens), Power Specifications (US/European standards, etc.), Battery Capacity
Software
Android System Version, Multi-language Interface, Pre-installed APKs (such as Netflix/YouTube)
Appearance
Shell Material/Color, Laser Engraving of Brand LOGO, Gift Packaging Design
Accessories
Custom Remote Control, Anti-glare Screen, Portable Bag, Multi-language User Manuals
Q7: What payment terms do you accept?
A:Sample Order: 100% Prepayment (PayPal/Western Union)
Bulk Order: 30% Deposit + T/T Balance Payment, L/C (≥ 500 units)
Credit Customer: Credit period supported (Qualifications need to be reviewed)
Q8: Do you provide warranty and technical support?
A:Warranty Period: 1 year for the entire machine (LED/Laser technology lifespan ≥ 25,000 hours)
After-sales Service: Remote fault diagnosis, global direct delivery of spare parts, local service provider connection (North America/Europe/Southeast Asia)
Training: Provide product manual, installation video and API interface documentation (for system customization customers)
Q9: How to ensure product quality consistency?
A:Quality Control System: ISO9001-certified factory, full-process automated inspection (including aging test, optical calibration)
Transparency Tracking: Provide photo/video updates during production stage, support third-party inspection (SGS/BV, etc.)
More Product Comparisons
| Product |  | |
| Model | HW8 | HW7 |
| Resolution | 1920×1200 | 1920×1200 |
| White Light Brightness/ANSI lm | 8400 | 7400 |
| Contrast Ratio | 2000,000:1 | 1000,000:1 |
| Uniformity | >90% | >90% |
| Connectivity | HDMI IN ×2 / HDBaseT ×1 / 3D Sync x2 (IN/OUT) / Audio Out ×1 / RS232 ×1 / Remote In ×1 / RJ45 ×1 / USB-A POWER OUT (5V 0.5A)×1 / 12V OUT ×1 | HDMI IN ×2 / 3D Sync x2 (IN/OUT) / Audio Out ×1 / RS232 ×1 / Remote In ×1 / RJ45 ×1 / USB-A POWER OUT (5V 1.5A)×1 / 12V OUT ×1 |
| Operating System | / | / |
| Size / Weight | 486mm*393mm*186mm / 13KG | 486mm*393mm*186mm / 10.5KG |
